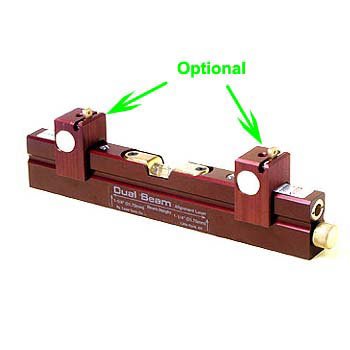

L202 Dual Beam Alignment Laser with optional, individually switched laser beams. (Shown with AP202 Support Brackets)

"This Dual Beam Alignment Laser is an industrial tool. It works for me in more applications." Joe Wilson, Builder Hot Springs, Arkansas

- Construction layouts

- Point-to-Point Reference

- Industrial Aiming

- Positioning & Alignment

- Stays and Shoring

- Site Leveling

Multiple Uses and Functions:

- Two eye visible laser beams shoot in opposite directions

- Align two points from the middle

- Extend alignment accuracy by using one beam as a tacking point - Halves the actual working distance

- Magnetic base - Clamps to metal equipment and drive systems for alignment references

- Includes precision "Glow In The Dark" 5 minute of arc level vial - Accurate to 1/8" @ 100 feet

- Hard anodized (Rockwell 65C) - Superior abrasion resistance

- Weather sealed with "O" Rings

- L202

- Pulley

- Alignment

- Kit

Includes:

- Magnetic base

- Backlit 5 arc minute level vial

- Hard case

Specifications:

- Model L202 Dual Beam Alignment Laser

- Dimension: 9.5" L x 1.625 H x .75 W(241mm)x(41mm)x(19mm)

- Weight: 18 oz. with Batteries

- Power: (3) size AA Alkaline Batteries

- Class: IIIa, 635nm

- Level Vial: 5 min of Arc. Accurate to 1/8" @ 100 ft

- Beam Divergence: <.3 mrad.; .017° Use with most accessories for aiming, positioning and aligning.

- AP9OC Beam Bender for 90° layouts

- AP180C Beam Spreader for "Laser Chalkline"

- AP92 Mounting Collar (required with AP9OC & AP180C)

- AP1OOA, AP1000 Leveling Adapter Plates for tripod mounting

- AP202 Support Bracket for pulley alignments

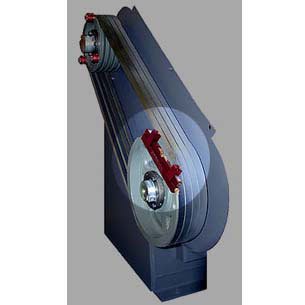

How it works (see last picture):

"Laser Chalkline" parallels pulleys. You can see pulley or belt misalignment and watch laser line on targets change as the adjustments are made. Optional built-in Beam Spreader aligns pulleys, belts, conveyors. Provides a plumb and horizontal level line.
