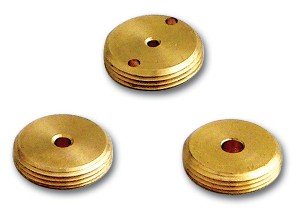

Used for lowering laser beam’s intensity and reshaping the beam to 1/16”, 3/32” or 1/8” Diameters. Aperture pack for models L25, L50, L56 & L58.

Used for lowering laser beam’s intensity and reshaping the beam. Aperture pack for models L100, L350 & L700 includes four diameter sizes 1/16” 3/32”, 1/8” & 13/64.

Shown with AP94 Mounting Assembly.

Used for survey and drill layouts.

Shown with L59 Alignment Module.

Positional accuracy: .1° Horizontal .003° Vertical

Shown With GL350 MSHA Mining Alignment Laser and optoinal T75 Tripod

Positional accuracy:

• .1° Horizontal
• .003° Vertical
• Shown with L59 Alignment Module

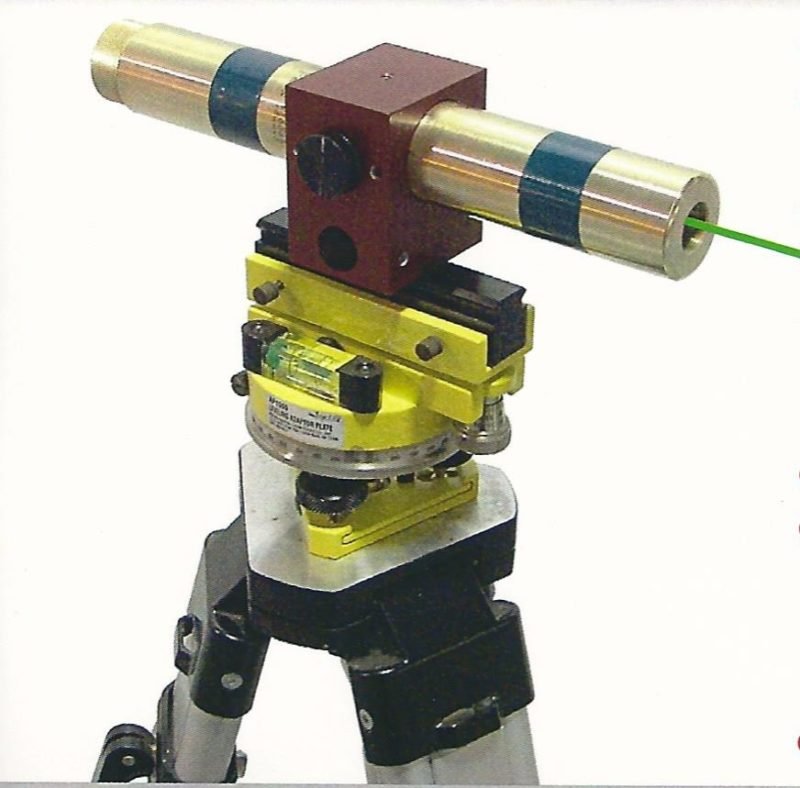

Includes:

• AP1000 – Leveling Adapter Plate
• AP353 Mounting Base
• AP97 Mounting Block for GL350 or L350 lasers

Order Additional: AP97A Mounting Block for L350 AND L355X lasers

1" quick detach Ring Set.

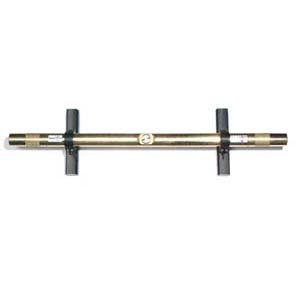

Works with AP351 Ring Set (2).

Clamps L350 and L700 Alignment Lasers to mounts.

L700 Shown in Brass.

The AP100A LEVELING ADAPTER PLATE provides a stable base that supports the L100M MX Laser Precision Level™, L50M Laser Micro Level™ or L25 Laser Handy Line™ for stand alone operation. The AP100A mounts to construction tripods (5/8"-11 tpi) and can be used on any flat surface.

Specifications:

- This lets one person setup the laser and make the measurements fast and accurate

- Includes AP55 mounting clamp - mounts L50 and L25 style hand levels

- 3 adjustment leveling system-Easy to fine tune level for increased accuracy

- 360° swivel action-Take measurements in a complete circle

- +/- 5° tilting action-Corrects for large errors in ground level

The T75 tripod is constructed of all aluminum with a cast and machined head for mounting laser hand levels or general layout devices. Solid cast shoes with removeable studs provide stable support on rough terrain. The T75 telescopes from 40" to 66" in height and includes a 5/8" x 11 standard male mounting thread. A handy shoulder strap is included from easy transportation. Construction grade design, will last a lifetime!

ASK FOR SHIPPING COST BEFORE ORDERING.

The AP1000 Transit Adapter Plate is a laser mounting system that provides precise adjustments in both horizontal and vertical axis. Site layouts in 360° increments, layout measurements, general survey readings and slope & grade shots can be done more precisely even with only one person. Features: Fine horizontal azimuth scale with 0.1° vernier and vertical micrometer with plus or minus 5° range and 1/16" resolution at 100 feet.

Shoots Beam 2 Miles! (Use with Models L350 & L100M).

10' line @ 100 ft. Built-in Line Generator Lens for vertical reference line. (Use CL1000 with Models L350, L100M and AP180D)

(Use GL1000 with Models GL350, GL100M and GL700)

Use with L202 Dual Beam Alignment Laser and working Spads.

The AP90C Beam Bender™ attaches to all Lasers and creates two laser beams that are exactly 90° apart. This means that right angle layouts can be done LASER FAST and LASER ACCURATE! Includes AP92. (Use with L100, L50 & L25).

Rotates 360°. Draw any angle of reference. The AP180C changes the laser dot into a laser line. Accurate 90° reference. Used with all Laser Hand Level models (works best with the L100M MX Laser Precision Level).

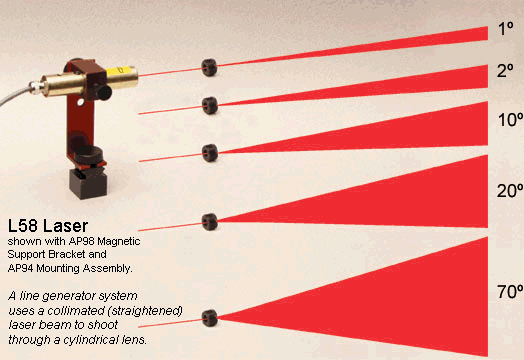

A cylindrical lens is a round bar or cross section of glass through which the collimated laser light passes and then spreads into a fan beam to form a line. Works with L56, L58, L202 and L600 – red lasers.
