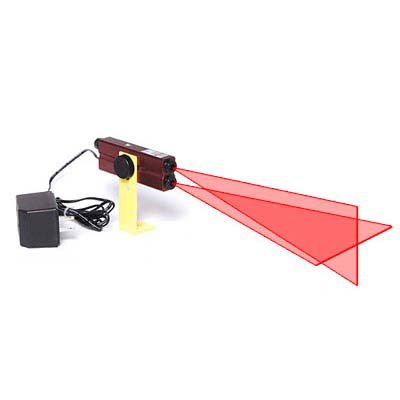

This dual beam line generator system is used for marking, positioning, aligning & establishing orientation and aiming. The L600 Crosshair Line Generator is industrial tough and loaded with extras. Show with AP94 Adjustable Mounting Bracket

- Cylindrical lens technology

- Solid glass optical system draws a continuous line at any distance.

- Coarse & fine position adjustment

- eases setups and provides pinpoint movements for each line

- Variable line lengths

- Choose between 15, 30 and 70 degree divergent lines

- Mounting bracket included - 1/4-20 tpi thumbscrews and "L" bracket provides complete adjustment range - up, down, right or left

- Line widths - Choose between different line widths. Line structure can fit the application

- Push on/off switch - Turn unit on and off without having to disconnect power

- Beam on Indicator - Two indicators top & bottom for easy viewing

- Hard Anodized - Scratch resistance with elegant styling and distinctive red color

- Laser Diode - Rated for 10,000 hours of operation or 5 years normal operating condition

- AC power adapter included - Ready to operate on standard 110 AC power

- Voltage - All external wiring operates on low, safe voltage

Shown with optional Magnetic Mounting Bracket

Options:

- Magnetic Mounting Bracket

- 4-24 VDC power option # Battery pack available

- 10mW Extreme brightness laser diode

- Green Laser Technology™

Specifications:

-Model L600AC Laser Crosshair Line Generator

- Power: 110 AC @ 10 mA (L600DC 4-24 VDC @ 100 mA, GL600AC 110 VAC @ 50 mA, GL600DC 3 VDC @ 500 mA. Other powers optional)

- Dimension: 4"L x 3/4"W x 1-3/8"H - 34.9mm x 101.6mm x 19mm

- Weight (w/mount): 7.5 oz.

- Class: ll, 635nm, < 1 mw
