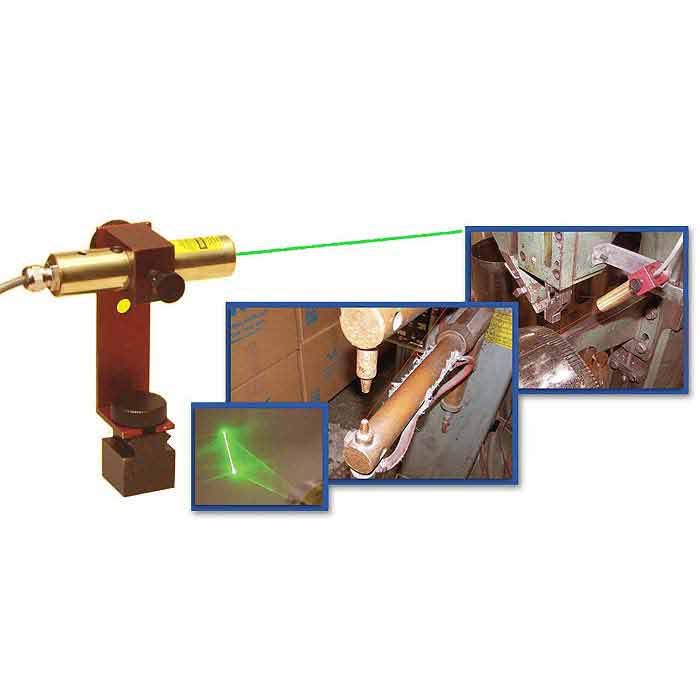

Applications:

- Centering parts on a riveter

- Positioning parts for spot welding

- Drill press alignments

- Pointing, positioning and alignment

“Beam is Concentric”

The laser beam is aligned with the outside diameter of the case. This means that you can use the outside of the case for centering and positioning the beam.

- Solid brass

– Industrial grade tough

- All glass optics

– Won’t cloud over in harsh environment

- Wedge prisms for beam steering

– Beam will stay in position even if dropped

- Water and dust proof

– Suitable for industrial requirements

- 4-24VDC power option

– Use with PLC controllers

“Draw a Green Laser Line”

Use Green laser light for Maximum Brightness.

The GL58AC is 10 times brighter.

“You can see the laser line in sunlight.”

Specifications:

-Model GL58AC Green (L58DC 4-24 VDC @ 50 mA, GL58DC 3 VDC @ 250 mA Order PS18 or PS36 for other power options)

- Laser Beam Power: Less than 5mw @ 635nm/532nm, Class IIIa.

- Beam Divergence: Less than .4 mrad.

- Optics: Glass Collimating Lens and Wedge Prisms

- Concentric beam alignment to case O.D.: +/- 1/8” @ 100 ft.

- Waterproof: IP67 (1m for 10 seconds)

- Power: L58AC Red 110 VAC @ 5 mA, GL58AC Green 110VAC @ 25 mA

- Dimension: 3 ¼”L (76.2mm) x ¾” dia. (19.05mm)

- Operating Temperature Range Red: -10°C – +50°C

- Operating Temperature Range Green: +10°C – +30°C
